Quiet, long-lasting dependability and performance

Socket Style

• MOOG® engineered steel composition results in a stronger component
• Problem Solver® powdered-metal gusher bearing design enables grease to flow through the bearing to the stud for reduced friction and enhanced strength and stability
• Sealed boot keeps the internal components free from contamination
• Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
• Wrench flats at the base of the stud allow for a positive hold and the use of sockets for quick and easy installation and removal

Quiet, long-lasting dependability and performance

BOLT STYLE

• MOOG bolt style sway bar links feature problem-solving innovations for longer life and easier installation

• Features unique bushings that are molded to center the coated washers into place, making it easier to install
• Uses a 1" barrel lock nut that can easily be threaded on, even if the bolt end is flush with the washer

A combination of the moog problem solver bushing design and a new easier method of installation

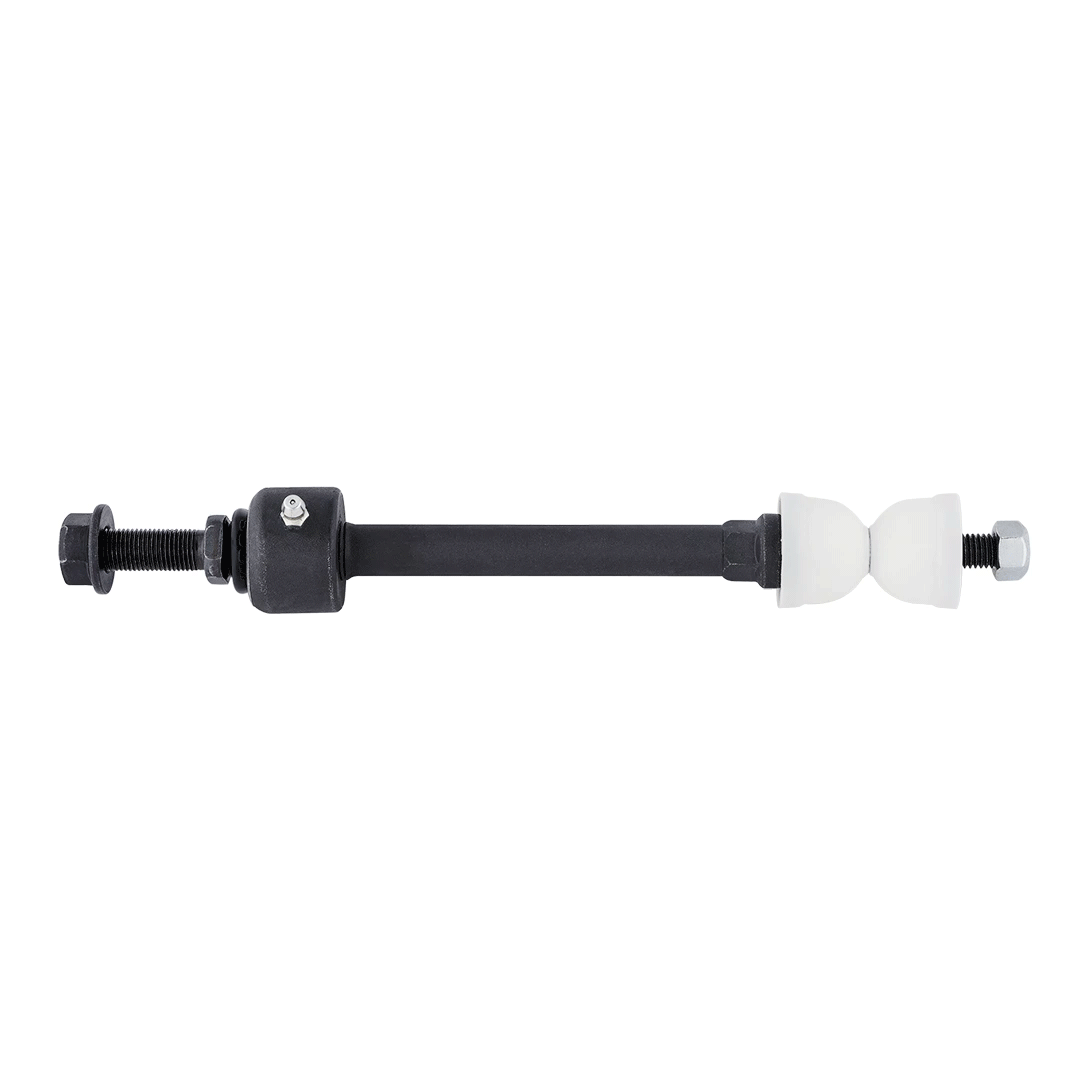

HYBRID STYLE

• Enhanced bushing design uses Thermoplastic Polyurethane (TPU) in place of traditional rubber.
• TPU bushings center and hold the coated washers into place, making them easier to install.
• Stop out design minimizes sensitivity to installation torque.
• With the nut seated fully against the stop, the bushings are ideally preloaded to provide excellent durability.
